Centrifugal Steam Moisture Separators

Get a Price/Quote

Product Details:

Power Consumption Nil
Noise Level < 65 dB
Air Discharge Moisture-free Steam
Condition New
Material Mild Steel / Stainless Steel
Dimensions Customizable as per Requirement
Configuration Vertical Inlet and Outlet
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Centrifugal Steam Moisture Separators Price And Quantity

Minimum Order Quantity 1 Unit

Centrifugal Steam Moisture Separators Product Specifications

Condition New
Configuration Vertical Inlet and Outlet
Air Discharge Moisture-free Steam
Dimensions Customizable as per Requirement
Working Presssure Up to 20 bar
Power Consumption Nil
Noise Level < 65 dB
Mute Yes
Air Flow Capacity Varies by Model
Material Mild Steel / Stainless Steel
Driven Method Pipeline Steam Flow

Product Description

BEP high efficiency Centrifugal Type moisture Separator are specifically designed for the extraction of liquid particles from air/ gas flow. A rotary motion is imparted to the air/gas flow by means of a guiding device with a high circulatory velocity. The particles, water droplets contained in the air/gas are flung on to the separator wall by centrifugal force and are collected at the bottom. The cleaned dry air/gas leaves the separator through a central dip tube. The collected moisture at the bottom of separator casing is Automatically drain by BEP Auto drain trap. The collecting chamber is fitted with a cover plate which prevent the separated ,moisture being picked up again and carried forward. BEP moisture separator cannot become clogged and their Performance remains constant with a uniformly/low pressure drop.

Pressure Range - Up to 63 Kg/Cm2
Sizes - 25mm to 300mm
Media - Steam / Compressed air / Pressurised gases

Efficient Moisture Removal for Optimal Steam Quality

Centrifugal Steam Moisture Separators are designed to efficiently extract up to 99% of entrained water from steam, air, or gas. By ensuring dry, moisture-free steam, these units protect downstream equipment, enhance process reliability, and support system efficiency across various industries.

Versatile Applications and Easy Integration

With customizable dimensions, a wide range of connection sizes, and a design that caters to both flanged and threaded installations, these moisture separators fit seamlessly into steam pipelines and plant utility lines. Their robust construction and high corrosion resistance make them suitable for diverse environments, including boiler plants and modern HVAC setups.

Low Maintenance, Long-Lasting Performance

These separators are engineered for easy cleaning, minimal maintenance, and quiet operation (noise < 65 dB). Their gasketed or threaded sealing ensures reliable, leak-free performance, reducing the risk of downtime in critical process applications while maintaining safety and system integrity.

FAQs of Centrifugal Steam Moisture Separators:

Q: How does a centrifugal steam moisture separator work?

A: A centrifugal steam moisture separator uses the principle of centrifugal force to separate moisture from steam, air, or gas. As the vapor enters the separator, it is rapidly spun, causing heavier moisture droplets to move to the outer walls and drain away, delivering dry, moisture-free output.

Q: What are the benefits of installing a centrifugal moisture separator in steam pipelines?

A: Installing a centrifugal moisture separator ensures that steam is free of moisture, which improves system efficiency, protects equipment from corrosion and water hammer, and reduces maintenance costs by preventing damage due to wet steam.

Q: Where can these moisture separators be used?

A: These separators are suitable for use in steam pipelines, plant utility lines, boiler plants, process industries, and HVAC systems. Their robust design and flexible connection options make them ideal for a wide variety of industrial and commercial applications.

Q: What maintenance is required for a centrifugal steam moisture separator?

A: Maintenance is minimal. The separator features an easy-to-clean design and can be serviced without specialized tools. Regular inspections and cleaning of the internal surfaces are usually sufficient to maintain efficient operation.

Q: When should a centrifugal moisture separator be installed in a steam system?

A: A centrifugal moisture separator should be installed wherever high-quality, dry steam is necessary, especially upstream of sensitive equipment, control valves, heat exchangers, or wherever significant moisture content is detected in steam lines.

Q: What materials are available for these separators and how do they resist corrosion?

A: The separators are constructed from mild steel or corrosion-resistant stainless steel grades like SS 304 or SS 316, offering robust protection against rust and chemical attack, which is vital for long-term performance in harsh industrial environments.

Q: How does the minimal pressure drop of the separator benefit the process?

A: With a pressure drop below 0.1 bar, these moisture separators ensure that system energy losses are kept to a minimum, maintaining steam or gas delivery pressure and ensuring efficient, cost-effective operation throughout the system.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Steam Moisture Separators' category

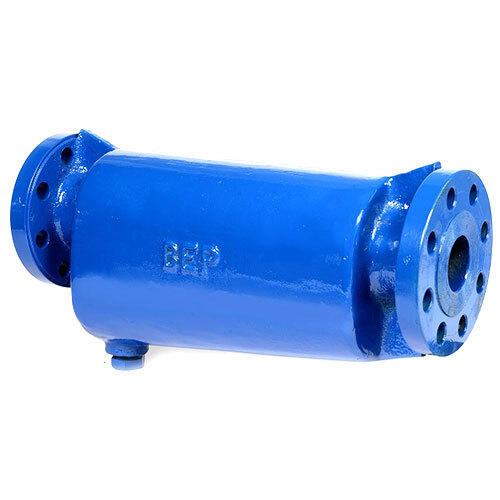

Baffle Steam Moisture Separators Minimum Order Quantity : 1 Configuration : Baffle Type, Vertical Orientation Air Discharge : High Efficiency Moisture Removal Condition : New Power Source : No Power Required Working Presssure : Up to 16 Bar Dimensions : As per Model Noise Level : Low Power Consumption : Nil Mute : Yes Material : CS/SS (Carbon Steel / Stainless Steel) Air Flow Capacity : Varies with Model Driven Method : Pipeline Mounted
